Solar-powered Swimming Pool Pumps
Run your swimming pool filter or solar heating system directly from the sun, for free!
Ideal use for old grid-connected solar panels that have expired CEC accreditation but still work perfectly well.
- For clean, clear pool water all day, every day
- No running cost at all
- Filter or heat whenever the sun is shining
- In bright sun, it runs fast and pumps more water, on cloudy days it runs a little slower
Our range of Solar Pool Pump sizes:
| Model | Pump | Maximum Head | Maximum Flow | Solar array | ||
| Volts | Power | meters | Litre/min | Voc | Rated Power | |
| SJP-24/200 | 24 | 200 | 9 | 100 | 26 – 50 | 300 – 400 |
| SJP-48/500 | 48 | 500 | 15 | 283 | 50 – 100 | 750 – 1000 |
| SJP-72/900 | 72 | 900 | 19 | 350 | 76 – 150 | 1200 – 1800 |
| SJP-72/1200 | 72 | 1200 | 19 | 517 | 76 – 150 | 1800 – 2400 |
200w Solar-powered Pond Pump
Ideal for small ponds, water features, and waterfalls. Also well-sized for solar-heating a spa.
Solar Pool Pump 200 watt 24 volt
Specifications and Prices (June 2024)
| Maximum head : | 9 metres |
| Maximum flow : | 100 lpm |
| Filters swimming pool of up to : | 10,000 litres |
| Suits solar heating collector of up to 40 sqm on a single-story roof | |
| Shipping details: 49 x 23 x 37cm 11kg | |
| Brushless 200w DC Pump and mppt controller | $945 |
| Solar panel kit (1 x 440w) and metal roof mounting frame. (For tile roof add $40) | $660 |
| DC weatherproof solar isolator, 10m DC twin-wire, 10m earth wire and earthing lug, and MC4 connection kit | $220 |
| Complete kit, including GST | $1825 |
500w Solar-powered Pool Pump for small pools and spas.
Suitable for filtering or for solar heating small to medium size pools and spas.
SJP-48/500 solar pool pump
Power: 500 watts
Voltage 48 volts
Outlet 40mm
Size: 580 x 270 x 370 mm
Weight: 14 kg
Solar panels: 2 x 440 watt
Size each: 2100 x 1040 x 40 mm (subject to availability)
Weight: 24 kg
LONGI LR4-72HPH-425-455w Solar Panel Specifications
Pump Performance in full sunlight
| Head | Flow | |||
| Metre | feet | m3/hr | gal/min | litre/min |
| 15 | 49 | 4 | 15 | 58 |
| 12 | 39 | 7 | 31 | 117 |
| 7 | 23 | 10 | 46 | 173 |
| 5 | 16 | 14 | 62 | 233 |
| 2 | 7 | 18 | 77 | 292 |
Specifications and Prices (June 2024)
| Maximum head : | 15 metres |
| Maximum flow : | 292 lpm |
| Filters swimming pool of up to : | 30,000 litres |
| Suits solar heating collector of up to 40 sqm on a single story roof | |
| Shipping details: 58 x 27 x 37cm 14kg |
|
| Brushless 500w DC Pump and mppt controller | $1236 |
| Solar panel kit (2 x 440w) and metal roof mounting frame. (For tile roof add $40) | $880 |
| DC weatherproof solar isolator, 10m DC twin-wire, 10m earth wire and earthing lug, and MC4 connection kit | $220 |
| Complete kit, including GST | $2336 |
* STCs solar rebate may be available for this system once installed and signed off.
900w Solar-powered Pool Pump for regular-size swimming pools.
Suitable for filtering regular-size swimming pools, and for solar heating of larger pools.
* This model is currently not available in Queensland
SJP-72/900 solar pool pump
Power: 900 watts
Voltage 72 volts
Outlet 50mm
Pump Size: 530 x 240 x 340 mm high
Packed Size: 580 x 280 x 380 mm
Weight: 16 kg
Solar panels: 3 x 440 watt
Size each: 2100 x 1040 x 40 mm (subject to availability)
Weight: 24 kg each
LONGI LR4-72HPH-425-455w Solar Panel Specifications
Pump Performance in full sunlight
| Head | Flow | |||
| Metre | feet | m3/hr | gal/min | litre/min |
| 17 | 56 | 4 | 15 | 58 |
| 16 | 52 | 7 | 31 | 117 |
| 15 | 49 | 11 | 46 | 173 |
| 13 | 43 | 14 | 62 | 233 |
| 5 | 16 | 18 | 77 | 292 |
| 2 | 7 | 21 | 92 | 350 |
Specifications and Prices (June 2024)
| Maximum head : | 19 metres |
| Maximum flow : | 350 lpm |
| Filters swimming pool of up to : | 60,000 litres |
| Suits solar heating collector of up to 65 sqm on a single story roof | |
| Shipping details: 58 x 27 x 37cm 16kg |
|
| Brushless 900w DC Pump and mppt controller | $1330 |
| Solar panel kit (3 x 440w) and metal roof mounting frame. (For tile roof add $60) | $1280 |
| DC weatherproof solar isolator, 10m DC twin-wire, 10m earth wire and earthing lug, and MC4 connection kit | $220 |
| Replacement 900w pump only (for existing systems) | $875 |
| Complete kit, including GST | $2830 |
* STCs solar rebate may be available for this system once installed and signed off.
- For people living off the grid, and want the flexibility to run the 900-watt solar pool pump from a 240-volt generator, at times when there is insufficient sunlight, we have a high-voltage pump and controller version available. The performance is the same, but the solar panels need to be configured differently. Call us for more details if you are interested in this option.
1200w Solar-powered Pool Pump for larger domestic or small commercial pools.
Suitable for filtering large size swimming pools, or solar heating large pools.
* This model is currently not available in Queensland
SJP-72/1200 solar pool pump
Power: 1200 watts
Voltage 72 volts
Outlet 50mm
Size: 665 x 320 x 460 mm
Weight: 27 kg
Solar panels: 4 x 440 watt
Size each: 2100 x 1040 x 40 mm
Weight: 24 kg
LONGI LR4-72HPH-425-455w Solar Panel Specifications
Pump Performance in full sunlight
| Head | Flow | |||
| Metre | feet | m3/hr | gal/min | litre/min |
| 18 | 56 | 4 | 15 | 58 |
| 16 | 52 | 7 | 31 | 117 |
| 15 | 49 | 11 | 46 | 175 |
| 14 | 46 | 14 | 62 | 233 |
| 13 | 43 | 18 | 77 | 292 |
| 10 | 33 | 21 | 92 | 350 |
| 5 | 16 | 25 | 108 | 408 |
| 2 | 7 | 30 | 133 | 502 |
Specifications and Prices (June 2024)
| Maximum head : | 19 metres |
| Maximum flow : | 502 lpm |
| Filter pump for swimming pool of up to : | 70,000 litres |
| Suits solar heating collector of up to 85 sqm on a double story roof | |
| Shipping details: 49 x 23 x 37cm 11kg |
|
| Brushless 1200w DC Pump and mppt controller | $1530 |
| Solar panel kit (4 x 440w) metal roof mounting frame. (For tile roof add $80) | $1600 |
| DC weatherproof solar isolator, 10m DC twin-wire, 10m earth wire and earthing lug, and MC4 connection kit | $220 |
| Replacement 1200w pump only (for existing systems) | $995 |
| Complete kit, including GST | $3350 |
* STCs solar rebate may be available for this system once installed and signed off.
If you are sourcing your own solar panels, there are 2 basic rules when buying solar panels for our solar-powered pool pumps:
- Rated power from the solar array should be about 1.5 to 1.9 times the pump power to make sure the pump works in its best condition.
- Ensure the voltage from the solar array is high enough, but does not exceed the controller maximum.
- Design assistance is available for our pumps if you are unsure.
A two-year warranty applies to the pump and controller and covers manufacturing defects, but not freight.
The warranty is void if the pump has overheated from being run dry, blocked with debris, or run with a valve shut.
Solar heating systems suitable for solar-powered Pool Pumps
We supply tailored solar-powered solar pool heating systems – the pump runs when the sun is shining, and you can also control the pool temperature limits.

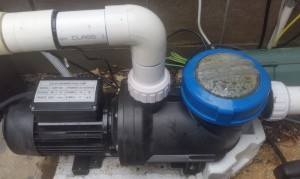

Typical solar panels powering 750w solar pool heating pump
Details of our most popular pool heating system are here.
We can quote on supply, or supply and installation. We need your pool size details.
Time Clocks for controlling solar-powered pool pumps
Programmable Time clocks are available to control the pump running times during the day. These are not IP rated and must be installed in a protected place.
Use this timer to switch your pump on/off at different times each day.
Switches ON and OFF up to 28 times each day and features a selection of 15 day-of-the-week options. The minimum programmable time is 1 second.
The timer includes a long-lasting lithium battery to keep the settings when power is removed. Can be mounted to a wall with the short bit of DIN rail supplied.
Can switch the pump using the sensor terminals inside the pump controller, do not wire the pump directly through the timer.
Note please incorporate a “catch diode” (supplied) to protect the internal electronics from some types of load surges.
Weight: 0.13 Kilograms
Warranty: 1yr
Price of kit: $85
Temperature controllers for solar-powered pool pumps
Temperature controllers are available to allow the setting of the optimum pool temperature.
Details to follow.
*Training video – Splash Pool & Spa Show.
Installation and Operations Manual of solar pool pump
