Logan Solar Batteries
AGM Batteries
Two-volt cells:
Reliable AGM batteries, ideal for houseboats, and solar household use. Excellent replacement batteries.
Compact, robust, with solid brass terminals and strong ABS cases.
TL200-2 volt battery datasheet
TL500 2 volt battery datasheet
Logan Solar 2 volt AGM Batteries specifications
| Model | Volts | Capacity Ah | Dimensions （mm） | Weight kg | Prices
March 2020 |
|||
| C10 | C20 | L | W | H | ||||
| TL200 | 2 | 200 | 212 | 173 | 111 | 365 | 13 | $146 |
| TL500 | 2 | 500 | 530 | 241 | 172 | 330 | 31 | $395 |
Two-year replacement warranty. Freight costs extra.
Twelve-volt batteries:
Reliable AGM batteries, ideal for campervans, caravans, work trucks, boats, and small household solar systems. Compact, robust, with lead terminals and stainless bolts.

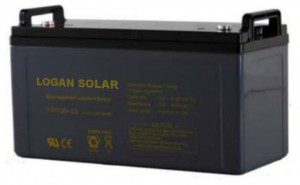

TD100 12 volt battery datasheet
TD120 12 volt battery datasheet
TD150 12 volt battery datasheet
TD200 12 volt battery datasheet
Logan Solar 12 volt AGM Batteries specifications
| Model | Volts | Capacity Ah | Dimensions （mm） | Weight kg | Prices
March 2020 |
|||
| C10 | C20 ) | L | W | H | ||||
| TD35 | 12 | $146 | ||||||
| TD100 | 12 | 90 | 100 | 307 | 169 | 216 | 30.2 | $327 |
| TD120 | 12 | 108 | 120 | 407 | 173 | 233 | 39.2 | $427 |
| TD150 | 12 | 135 | 150 | 171 | 241 | 241 | 45.5 | $477 |
| TD200 | 12 | 180 | 200 | 532 | 206 | 222 | 58.4 | $645 |
| TD260 | 12 | 236 | 260 | 520 | 268 | 220 | 77 | $823 |
| TS7.5 | 12 | 7.1 | 7.5 | 151 | 65 | 94 | 2.2 | $33 |
| TS12 | 12 | 19 | 20 | 181 | 77 | 167 | 6 | $99 |
One-year replacement warranty. Freight costs extra.
Tubular Gel Batteries
Durable in any climate, can sustain heavy discharges, and will retain their charged condition when stored, for ages.
Ideal for Grid back-up use, for power wall applications (Solazone batteries are stackable and safe), and also for remote power systems, because of their maintenance-free design.
Two-volt cells:

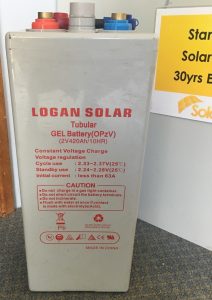

Logan 420Ah Tubular gel battery datasheet
Logan 800Ah Tubular gel battery datasheet
Logan 1200Ah Tubular gel battery datasheet
- reliable technology,
- non-polluting, top-quality silicate gel batteries,
- high performance and long cycle life,
- robust in adverse environments,
- non-spillable, stack them any orientation,
- maintenance-free,
- supplied with interconnecting links.
Logan Solar Tubular Gel 2-volt battery specifications
| Model | volts | Capacity Ah | Dimensions （mm） | Weight
kg |
Prices
March 2020 |
|||
| C10 | C100 | L | W | H | ||||
| OPzV420 | 2 | 420 | 575 | 145 | 206 | 471 | 32.5 | $455 |
| OPzV800 | 2 | 800 | 920 | 191 | 210 | 646 | 60 | $866 |
| OPzV2-1200 | 2 | 1200 | 1520 | 275 | 210 | 675 | 84 | $1280 |
| Storage rack for 24v 420Ah battery | $250 | |||||||
| Storage rack for 24v 800Ah battery | $410 | |||||||
| Storage rack for 48v 420Ah battery | $580 | |||||||
5-year replacement warranty. Freight costs extra.
Twelve-volt batteries:
LOGAN SOLAR 12 v 100 Ah tubular plate gel battery
These tubular positive plate gel batteries excel in industrial, commercial and domestic uses. Expect a long life and excellent reliability.
Features:
- High Storage capacity.
- High current recharge rate (0.8°C – 1.0°C).
- Able to sustain high discharge rates, resulting in a battery that can be discharged at 30C within 8 seconds with no damage to the battery.
- Wide working temperature range (-50°C to +70°C).
- Long-life when used under normal working conditions.
- Low self-discharge – full charge can be maintained for a year when stored at normal temperatures.
- No recharge memory.
- No acid mist emission when charging or discharging.
- No pollution from the electrolyte.
- The cycling charge life is as long as 10 or more years.
- Over 400 cycles of full recharging (normal acid battery is 200 times).
- Functions normally at up to 6,000 meters beneath the sea.
- Environmentally Friendly – the electrolyte can be later used as fertilizer and the rest of the product recycled.
- Maintenance Free.
Logan 12-volt Solar Tubular Gel batteries specifications
| Model | volts | Capacity Ah | Dimensions （mm） | Weight | Prices
March 2020 |
|||
| C10 | C100 | L | W | H | ||||
| TG100 | 12 | 100 | 115 | 407 | 173 | 208 | 36.3 kg | $542 |
| TG150 | 12 | 150 | 172 | 532 | 207 | 210 | 51.1 kg | $806 |
| TG200 | 12 | 200 | 230 | 545 | 275 | 241 | 75.3 kg | $1070 |
Front terminal 12-volt deep cycle Gel batteries:
LOGAN SOLAR TRG190 12 v 190 Ah battery
Logan front terminal Gel battery specifications
| Model | volts | Capacity Ah | Dimensions （mm） | Weight | Prices
March 2020 |
|||
| C10 | C20 | L | W | H | ||||
| TRG110 | 12 | 110 | 394 | 110 | 285 | 34 kg | $460 |
|
| TRG190 | 12 | 190 | 199 | 561 | 125 | 316 | 55.6 kg | $658 |
Large or special orders supplied for individual projects, ask about our trade rates and delivery times.
